Titanium Basket Sizes & Mesh Specs – Complete Product Guide

For successful industrial operations, it is important to know all the details about titanium basket goods when choosing precision-engineered filtration and electroplating equipment. These special containers are made from high-grade titanium alloy mesh and are very strong and don't rust. They can be used in difficult situations like electroplating, chemical processing, and water treatment. Choosing the right basket size and mesh type has a direct effect on how well the process works, how long the equipment lasts, and how efficiently it works. This detailed guide tells procurement professionals everything they need to know about titanium basket sizes, mesh specifications, and application-specific needs so they can make the best investment choices and run their businesses successfully.

Understanding Titanium Basket Dimensions and Mesh Specifications

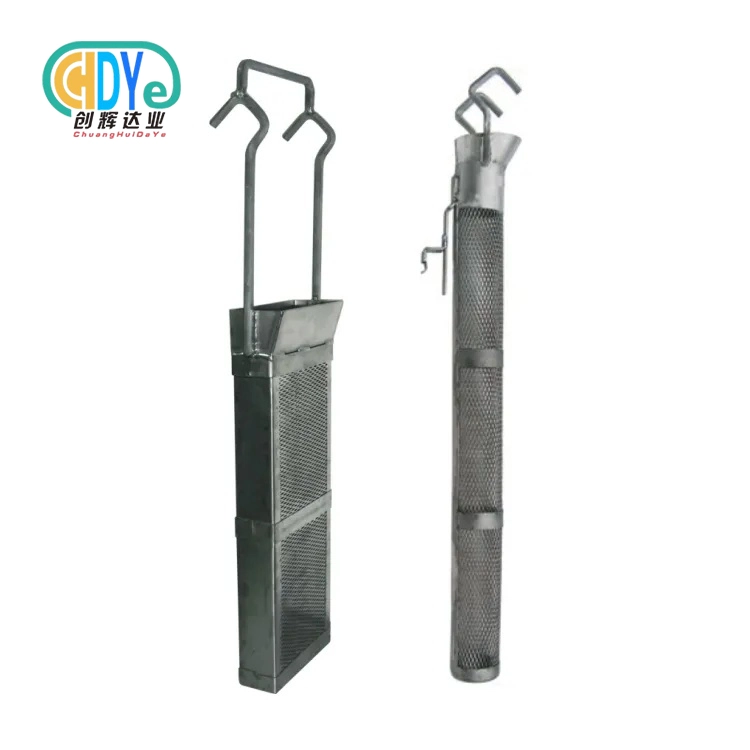

Choosing the right metal basket for industrial use starts with having exact measurements of the parts. The titanium mesh plate, frame plate, and hook assembly are the main structural parts. Together, they decide how the basket works and how it can be integrated into existing equipment systems.

Critical Dimensional Parameters

Basket size is determined by a number of linked factors that affect how well it works and how well it works with other items. The diameter measurements range from small lab-scale units to big industrial configurations. The height measurements determine the volume capacity and immersion depth needs. When figuring out the volume, you have to take into account both how much material can be loaded and how well fluid can flow around the mesh structure.

The mesh specs have a direct effect on the accuracy of the filtering and the flow characteristics. The mesh count shows how many openings there are per linear inch. Higher counts give better filtering, but they might slow down throughput rates. The largest particle size that can pass through the mesh structure is set by the aperture size, which is measured in microns or millimeters. Mechanical strength and open area percentage are both affected by wire diameter. This means that wire diameter affects both longevity and flow capacity.

Industry Standard Measurements

Standards for manufacturing make sure that all suppliers and uses are the same. Titanium materials of Grade 1 and Grade 2 have some slightly different qualities. Grade 2 is stronger and more resistant to corrosion than Grade 1. The argon arc welding method makes strong connections between mesh and frame parts, which keeps the structure strong even in tough working conditions.

Customization options let you match the exact dimensions to the needs of your tools. Engineering drawings can show exact sizes, how to place something, and special features like designs that make it harder to steal or different hook arrangements to fit specific operational needs.

Titanium Basket Durability and Corrosion Resistance – What B2B Clients Need to Know?

Titanium basket is much better than other materials in corrosive industry settings because it has better material properties. High-purity Grade 2 industrial titanium, which is 99.7% pure, is very resistant to acids, alkalis, and chloride solutions that would quickly wear down stainless steel or aluminum options.

Performance Advantages in Harsh Environments

Titanium's passive oxide layer forms naturally when it comes into contact with oxygen. It acts as a barrier against chemical attack, even in very violent media. This feature makes it possible for longer service life in places where normal materials break down quickly, like electroplating baths, chemical processing equipment, and sea settings. The structure's low weight makes it easier to handle, but it still has the same mechanical strength as structures that are much heavy.

There is a wide range of temperature tolerance that doesn't affect the mechanical or chemical resistance. Resistance to fatigue under cyclic loading conditions ensures reliable performance in situations where temperatures or stresses are changed over and over again. When these things are combined, they directly lead to less maintenance, longer replacement intervals, and higher operating reliability.

Maintenance and Longevity Considerations

When you place and use a basket correctly, it will last longer and work better. To keep anode slag from getting into the liquid, the mouth of the basket should stay just above the level of the liquid. A space of 100 to 150 mm above the processing parts keeps current from building up and causing damage through burning. The right electrical potential is kept by the basket and anode materials being close to each other. This also stops surface oxidation processes.

By doing regular inspections, you can find wear patterns or possible problems before they affect operations. Cleaning methods that use the right agents keep the mesh open and stop contamination from building up, which could change how the fluid flows or how well electricity flows through it.

How to Choose the Right Titanium Basket – A Buyer's Guide?

A thorough analysis of the specific application needs and working conditions is the first step in strategic selection. Different industries have different problems that affect the best way to set up the basket. For example, pharmaceutical manufacturing needs surfaces that are very clean, while heavy chemical processing needs surfaces that are very resistant to rust.

Application-Specific Selection Criteria

Baskets that are designed to evenly distribute current and keep anode material in place are needed for electroplating processes. Mesh density needs to be a good mix of electrical conductivity and keeping anode materials in place mechanically. Hook setups need to work with the hardware that is already on the plating line and keep the hooks in place while they are being used.

In chemical processing, corrosion protection and mechanical durability under harsh conditions are very important. The requirements for mesh must be able to withstand chemical attacks and allow enough flow for the process to work well. For filtering tasks, you need to precisely control the particle size by choosing the right opening size and mesh count.

Procurement Considerations

When evaluating a supplier, you should look at their ability to make things, their quality certifications, and how readily they offer technical help. Having ISO 9001:2015 approval means that quality is managed in a planned way throughout the whole production process. When it comes to key production equipment, lead times become very important for both standard and custom configurations.

When it comes to custom configurations, minimum order amounts may affect how you buy things. Instead of just looking at the original costs, cost analysis should look at all of the costs of ownership, such as the initial purchase price, any maintenance that needs to be done, and the expected service life. Having technical support helps with installation, operation, and fixing problems throughout the lifetime of a product.

Titanium Basket Sizes and Mesh Specs – Industry Applications and Case Studies

When it comes to their specific operating needs, different industries need different combinations of basket dimensions and mesh characteristics. Understanding these application-specific needs lets you make exact specifications and get the best performance results.

Electroplating Industry Applications

Baskets that are made to hold anode materials and spread the current evenly across the plating bath are helpful for nickel plating operations. A medium-density mesh that balances conductivity and material retention is used in most designs. The baskets are the right size for the baths and the amount of work that needs to be done. Hooks are made to fit specific plating line setups.

When acid copper plating, the chemicals are more active, so the metal needs to be more resistant to corrosion. Titanium mesh works well in places where stainless steel would break quickly because it can handle fluoboric acid. Mesh specs need to be able to handle copper anode materials while keeping electrical contact and keeping plating solutions clean.

Water Treatment and Chemical Processing

For filter and ion exchange processes, municipal water treatment plants use bigger basket shapes. High-flow mesh designs keep pressure drops to a minimum while still getting rid of particles well. When choosing the right size, you should think about both the hydraulic capacity and how easy it is to clean and check on a regular basis.

Customized basket shapes are often needed for chemical processing equipment to fit into current vessel shapes. When working with harsh chemicals like sulfuric acid, hydrochloric acid, and different salt solutions, corrosion protection is very important. Titanium is very good at mixing with chemicals, so it can be used reliably in a wide range of chemical conditions.

Specialized Industrial Applications

When making things for aerospace, you need parts that are both light and very reliable. Titanium baskets are used in specific cleaning and processing tasks because they are resistant to rust and don't add too much weight. Titanium stays strong and stable at high temperatures, which is useful for uses that need to withstand high temperatures.

Making electronics needs processing areas that are very clean and have a low chance of contamination. Titanium is great for processing semiconductors and electrical parts where purity is very important because it is biocompatible and chemically inert.

Company Introduction and Our Titanium Basket Solutions

Shaanxi Chuanghui Daye Metal Material Co., Ltd. has been working with rare metals for more than 30 years and can provide excellent titanium basket options for industrial uses around the world. Our location is in the Baoji High-tech Development Zone, which is known as China's "Titanium Capital." It has a lot of infrastructure and transportation systems that are perfect for making and distributing titanium products.

Our wide range of products includes both standard and special titanium baskets that are made to meet the needs of a wide range of industries. Precision argon arc welding, advanced machining, and quality control systems that meet ISO 9001:2015 standards are some of the things that can be made. This methodical technique makes sure that the quality of the product is always the same and that it works reliably in all situations.

Advanced Manufacturing Capabilities

In our production facility, we have high-tech tools like electron beam furnaces, precision machining centers, and welding systems that are especially made for making titanium parts. During the whole process of making something, strict quality control is maintained through methods for inspecting raw materials, melting and forging, machining and forming, and final inspection.

Custom engineering services can handle special mounting arrangements, custom size needs, and changes that are needed for a particular application. Technical support helps customers choose the right product, install it correctly, and keep improving operations to get the most out of them and extend their life.

Global Service and Support

Efficient logistics and streamlined quote methods make sure that international customers get their orders on time. Our method to serving customers puts an emphasis on clear communication, technical know-how, and quick service throughout the whole process of purchasing and running a business. The ability to place bulk orders helps with big industrial jobs and keeps prices and delivery times competitive.

Quality assurance is more than just making sure something works. It also includes full paperwork, tracking, and making sure it works as it should. Customers can be sure that the product will work well and be reliable with this methodical approach.

Conclusion

When choosing the right titanium basket specifications, you need to carefully think about the working conditions, mesh characteristics, and the size requirements. Titanium materials are much better than other choices in harsh industrial settings because they are more resistant to corrosion, have higher mechanical strength, and last longer. Knowing how basket size, mesh type, and performance are related lets you make smart purchasing choices that lower both the original cost and the long-term costs of running the business. Professional technical help and high-quality manufacturing methods make sure that a product works well and lasts a long time in a wide range of industrial settings.

FAQ

Q: What mesh size should I choose for my specific application?

A: Mesh size selection depends on particle retention requirements and flow rate specifications. Electroplating applications typically use medium-density mesh (20-40 mesh count) to balance conductivity with anode material containment. Filtration applications require finer mesh (60-100 mesh count) for precise particle removal. Chemical processing may use coarser mesh (10-20 mesh count) to maximize flow rates while providing corrosion resistance.

Q: How does titanium compare to stainless steel for corrosion resistance?

A: Titanium provides superior corrosion resistance compared to stainless steel, particularly in acidic, alkaline, and chloride environments. The natural oxide layer formation creates passive protection that self-repairs when damaged. Stainless steel may experience pitting, crevice corrosion, or stress corrosion cracking in aggressive chemical environments where titanium maintains integrity and performance.

Q: What are typical lead times and minimum order quantities for custom baskets?

A: Standard configurations typically require 1-2 weeks for production and delivery, while custom designs may need 2-3 weeks depending on complexity and specifications. Minimum order quantities vary based on customization requirements, with standard sizes available in smaller quantities. Complex custom configurations may require minimum orders to justify tooling and setup costs. Early communication with suppliers enables accurate scheduling and cost optimization.

Partner with Chuanghui Daye for Superior Titanium Basket Solutions

Shaanxi Chuanghui Daye Metal Material Co., Ltd. stands ready to support your titanium basket requirements with comprehensive technical expertise and proven manufacturing excellence. Our ISO 9001:2015 certified facility produces high-quality titanium baskets tailored to your specific dimensional and performance requirements. Contact our engineering team at info@chdymetal.com to discuss your application needs and receive detailed quotations for both standard and customized titanium basket configurations. As a trusted titanium basket manufacturer, we provide competitive pricing, reliable delivery schedules, and ongoing technical support to ensure optimal performance throughout your product lifecycle.
